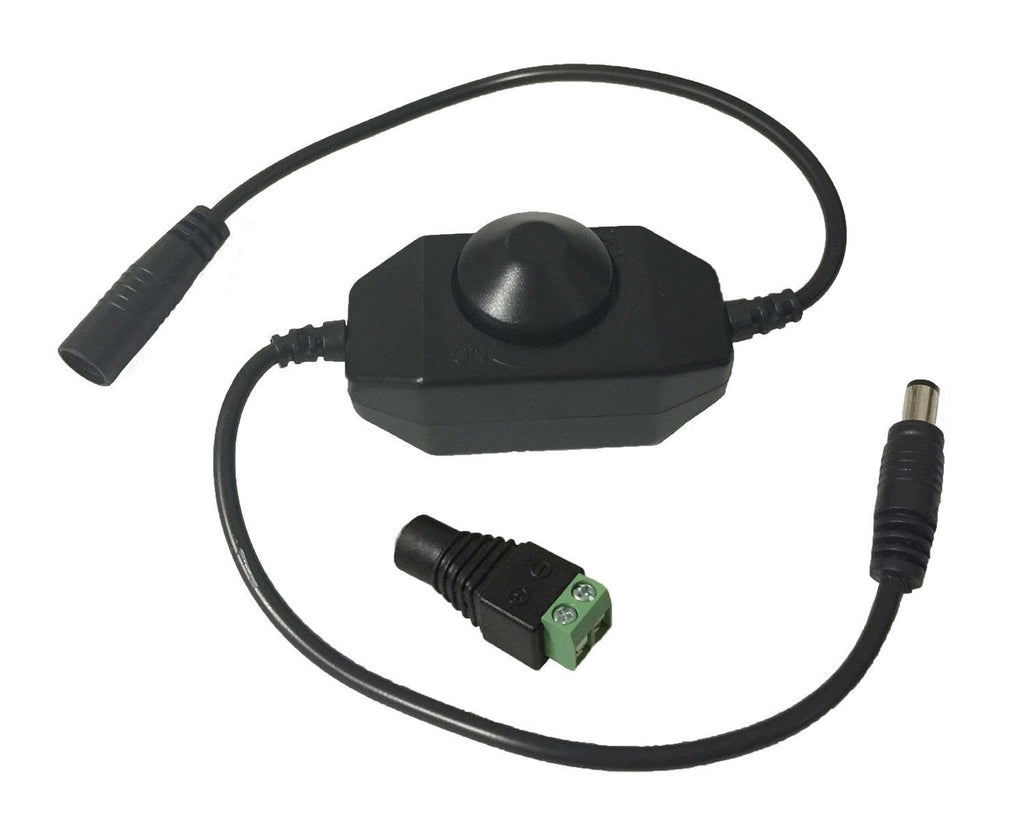

- Functions - To djust the brightness of SMD 5050/3528/2835/5630 LED strips, as well as other DC 12V LED devices. For example, it works for ALED LIGHT LED strips, for HitLights LED strips, for LEDJUMP LED strips, for LEDMO LED strips, for Lighting EVER LED strips, for Triangle Bulbs LED strips, for WenTop LED strips, for Nexlux LED strips, for SUPERNIGHT LED strips, for Tingkam LED strips, etc.
- PWM Digital Dimming - 0% - 100% dimming, no flicker, no current surges.
- Compatible with LED lighting devices that need 0~36W power supply at DC12V, or 0~72W power supply at DC24V.
- Easy to Operate - Knob-operated control. Just rotate the knob to adjust the brightness.
This dimmer is widely used on DC12V-24 LED lighting devices, such as LED strip light, aquarium lighting, etc.
Its control mode is knob-operated control, you could adjust light to the appropriate brightness in accordance with your actual need by simply rotating the knob. 0% - 100% dimming.
Pulse Width Modulation (PWM) technology, can dim single color LED strip and any DC 12V input LED products with common anode (12v+) leads from 0% to 100%.
Technical Parameters:
Dimming Range: 0-100%
Input Voltage: DC 12V-24V
Output Current (max): 3A
Output Power (max): 36W @ 12V, 72W @ 24V
Working Temperatures: -4~140ºF (-20~60ºC)
DC Jack Leads: 5.5mm DC Jack, 2.5" length
Product Size:(L)2.5" x (W)1.25" x (H)1.25"
N/W: 1.6 oz
Static Power Consumption: < 1W
Compatible with LED lighting devices that need 0~36W power supply at DC12V, or 0~72W power supply at DC24V.
Tips:
You can buy a piece of 3M tape to stick this dimmer on the wall or stick somewhere else.
